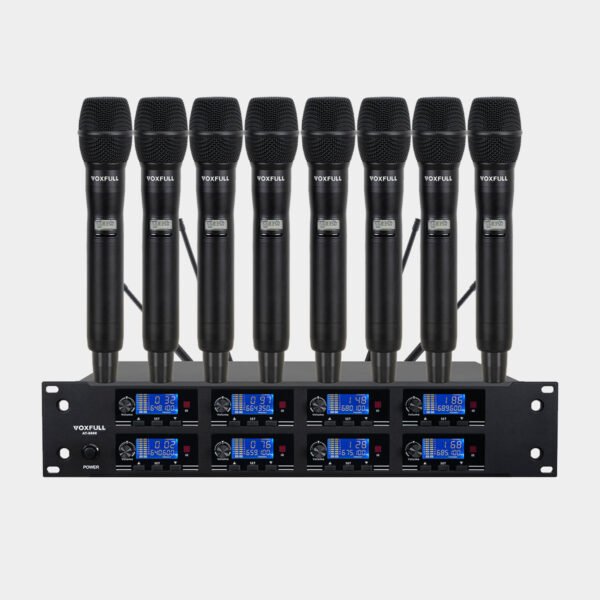

AT8800 8-Channel Wireless
Premium eight-channel UHF microphone solution for demanding applications. Operates up to 3 systems in the same band, with 200 selectable frequencies, infrared sync, and stable 80–100m transmission. Tailored for large-scale stage, KTV projects, and enterprise installations.
-
🎤 Crystal-Clear Vocals – Delivers smooth, detailed, and elastic sound with powerful low end, perfect for singers and presenters
-
📡 200 Channels with Auto Scan – Find the best interference-free frequency instantly, even in crowded environments
-
🔗 Flexible Models for Any Setup – Dual system supports 100+ KTV rooms; four and eight-channel models allow multiple sets in one venue
-
🔒 No More Cross-Frequency Issues – Digital pilot technology ensures stable performance and worry-free operation
-
🚀 Long-Range Reliability – 80–100m stable connection, perfect for live stage, karaoke, events, and church use
Product Features
-
Hybrid analog + digital circuit solution: retains analog stability and sound character while enhancing performance
-
Professional black finish: sleek, stylish, and stable design for stage and KTV use
-
Built-in auto frequency scanning: automatically detects and avoids interference
-
Lock function: prevents accidental operations, ensuring reliable use
-
Analog audio processing: ultra-low distortion, wide frequency response, wired-mic level sound quality
-
UHF digital pilot technology with noise-lock squelch: stable long-distance transmission, resistant to external interference
-
Operating frequency: 640–690 MHz, stable wireless digital transmission with extended range
-
IR infrared auto-sync: one press syncs transmitter to receiver channel instantly
-
1U metal chassis with dual-channel receiver, preset 200 non-interfering frequencies
-
High audio fidelity: delicate highs, powerful mid-lows, excellent detail reproduction
-
Never cross-frequency technology: ensures multi-device, multi-room operation without interference
-
Feedback suppression circuit, simple setup and tuning
-
Adjustable maximum output volume to suit different applications
-
200 channels × 2, channel spacing 250KHz
-
Superheterodyne dual digital pilot design, high sensitivity reception, prevents dropouts
-
Noise-free switching: special mute circuit eliminates pops when turning mic on/off
-
Handheld mic uses 18650 high-capacity rechargeable battery, runtime up to 15+ hours
-
Boost design ensures stable performance even at low battery levels
-
Ideal operating range: 80–100m in open space
-
0.96” TFT full-color display on handheld, full aluminum alloy body with dual-layer structure for durability and comfort
-
Suitable for professional stage, live performance, and KTV installations (100+ rooms without cross-frequency issues)
Technical Specifications
General
-
Carrier Frequency Range: 610–960 MHz (depending on regional regulations)
-
Bandwidth: 50 MHz
-
Modulation: FM
-
Max Deviation: ±45KHz
-
Frequency Response: 80Hz–15KHz
-
S/N Ratio: ≥50dB(A)
-
THD (1kHz): <2%
-
Operating Temp: -10℃~55℃
-
Range: 80–100m (open, interference-free environment)
-
Power Consumption: 8W (static: 3W)
Receiver
-
Oscillation Mode: Crystal oscillator
-
Spurious Suppression: ≥80dB
-
Image Rejection: ≥80dB
-
Sensitivity: 5dBuV
-
Audio Output: Balanced XLR 250mV/600Ω, Unbalanced 1/4” 400mV/3KΩ
-
Power Supply: DC12–16V, ≤1600mA
Handheld Transmitter
-
RF Power Output: max 30mW (regional limits apply)
-
Oscillation Mode: Crystal oscillator
-
Frequency Stability: <30ppm
-
Dynamic Range: ≥100dB(A)
-
Frequency Response: 50Hz–15KHz
-
Max SPL: 130dB
-
Mic Capsule: Dynamic, cardioid
-
Charging: Type-C, 460mAh current
-
Current: 100–110mA (standby) / 120–140mA (working)
-
Power: 1 × 2000mAh 18650 battery
